Perfect Pass – Displays

PerfectPass manufactures hundreds of display combinations in both industry sizes to fit and complement almost any dash cluster. Typically the Display will replace the existing boat speedometer since the PerfectPass speedometer reading is GPS accurate. However, the tachometer can also be replaced.

The following displays are just a sampling of the most common units that are available. Most are available with a variety of bezels to match any boat (Stainless Steel, Black, Gold, White).

If you don’t see one that matches your boat, contact us and we may be able to build or source one for you. If you have a newer boat that has all “multi function” Gauges then the External Display is a great option.

Note: Replacement displays for existing systems purchased before 2010 will likely need to upgrade their paddle wheel systems to GPS Stargazer so the new Display is compatible. (Older paddle wheel systems used an Intel platform that was discontinued by INTEL)

Actual Colours May Vary: Please note the LCD’s in all units are identical. Some Displays shown below are artist rendering vs. actual photographs.

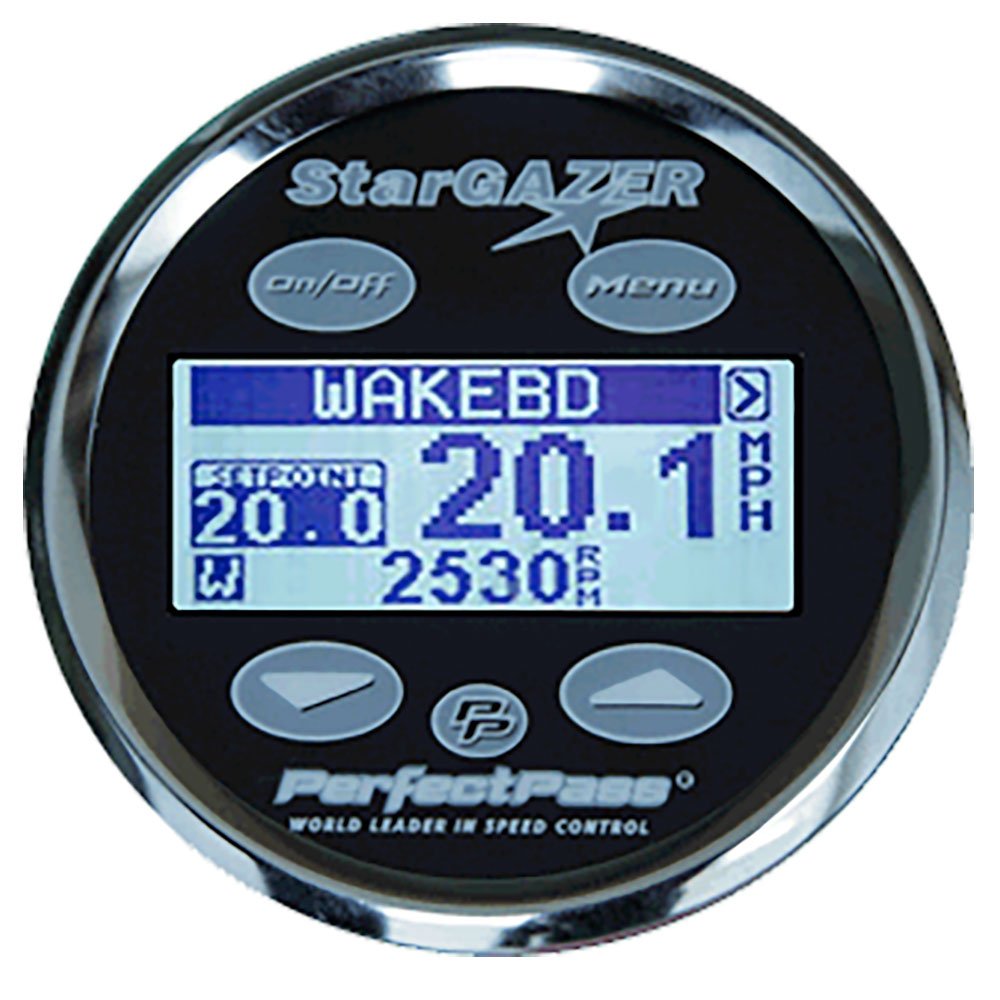

3.5 inch Star Gazer Black

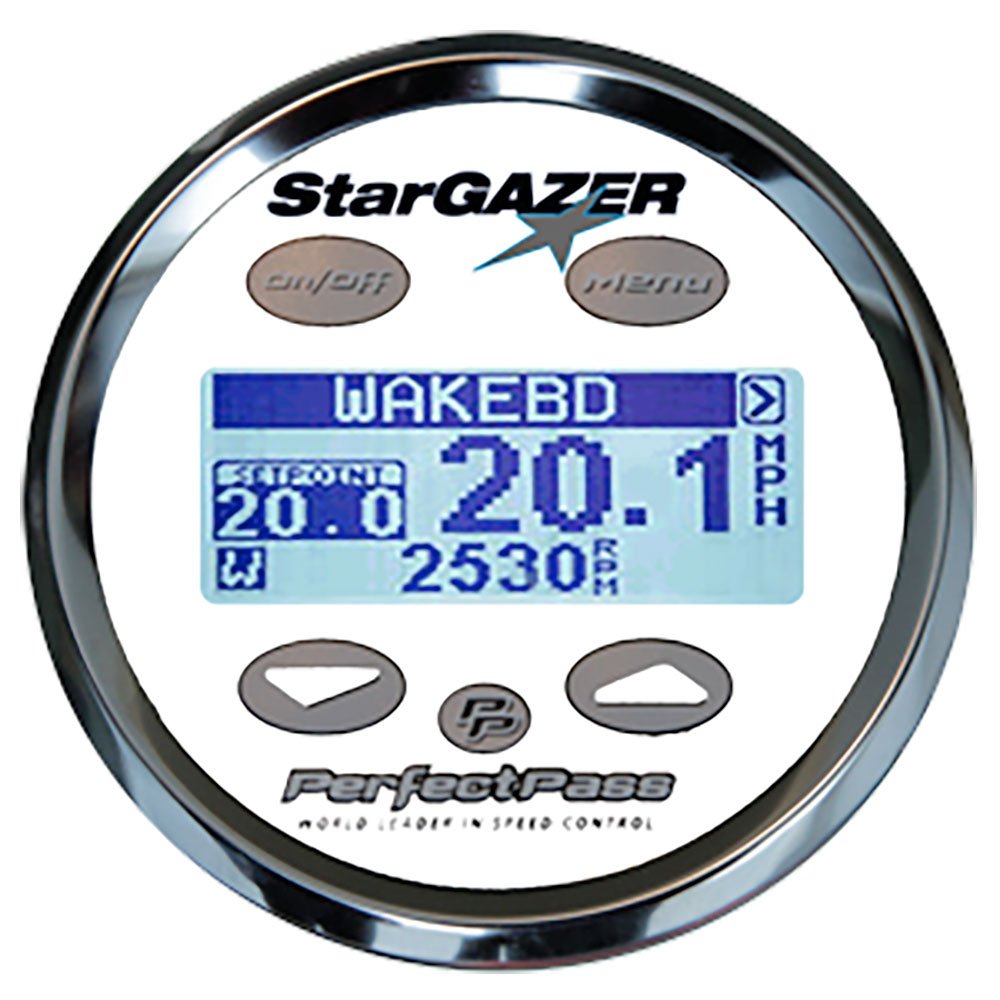

3.5 inch Star Gazer White

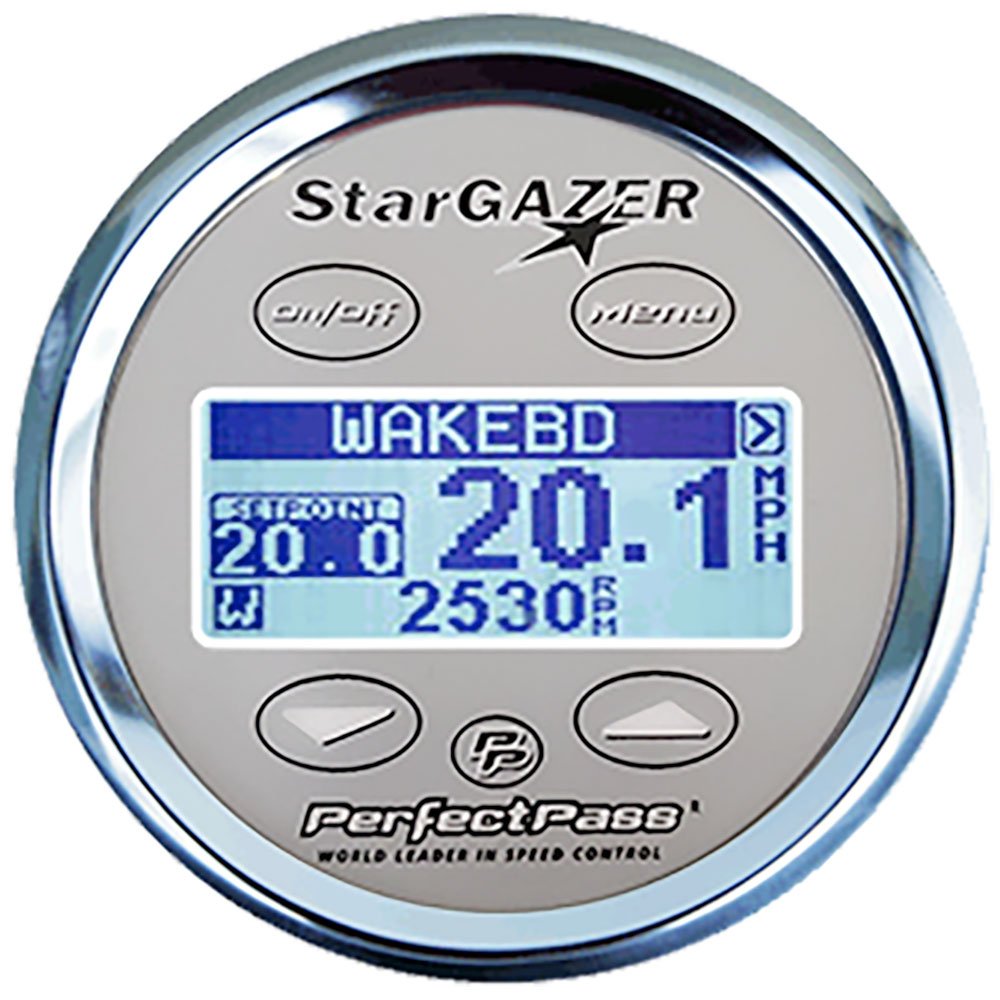

3.5 inch Star Gazer Silver

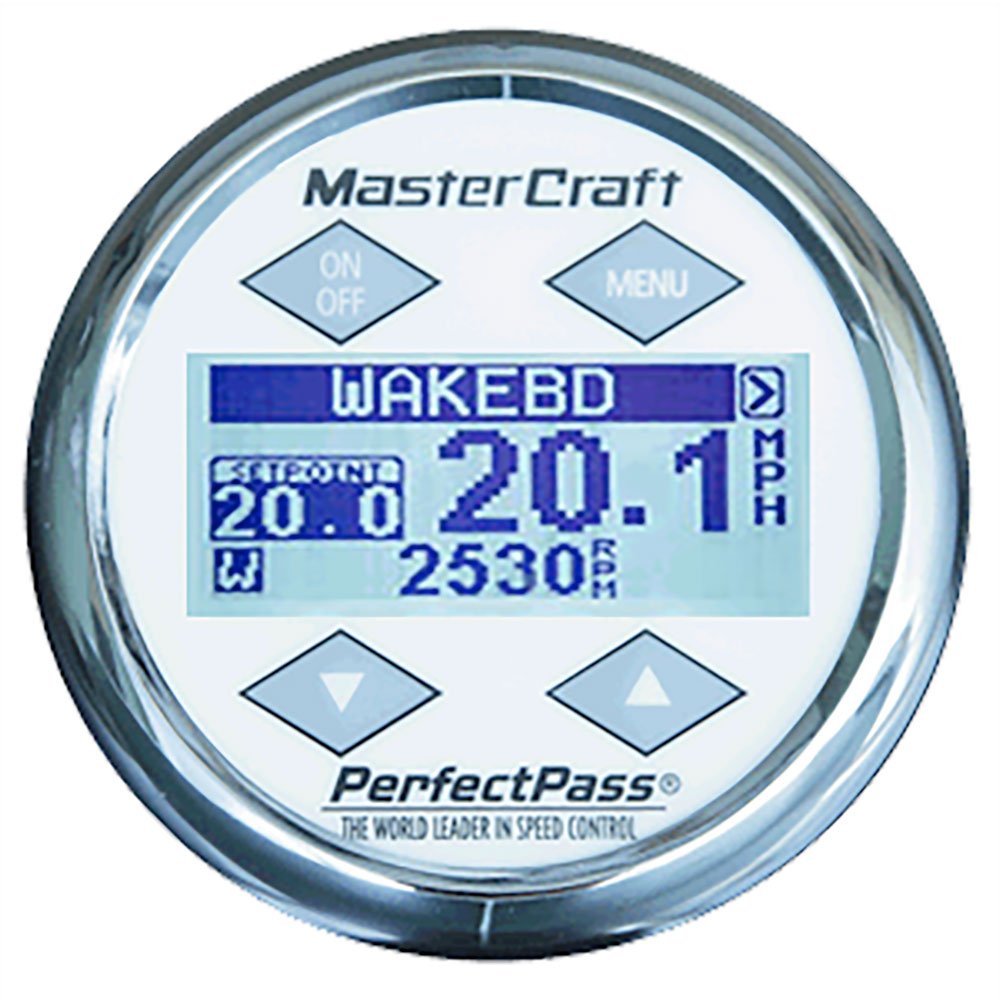

3.5 inch Mastercraft White

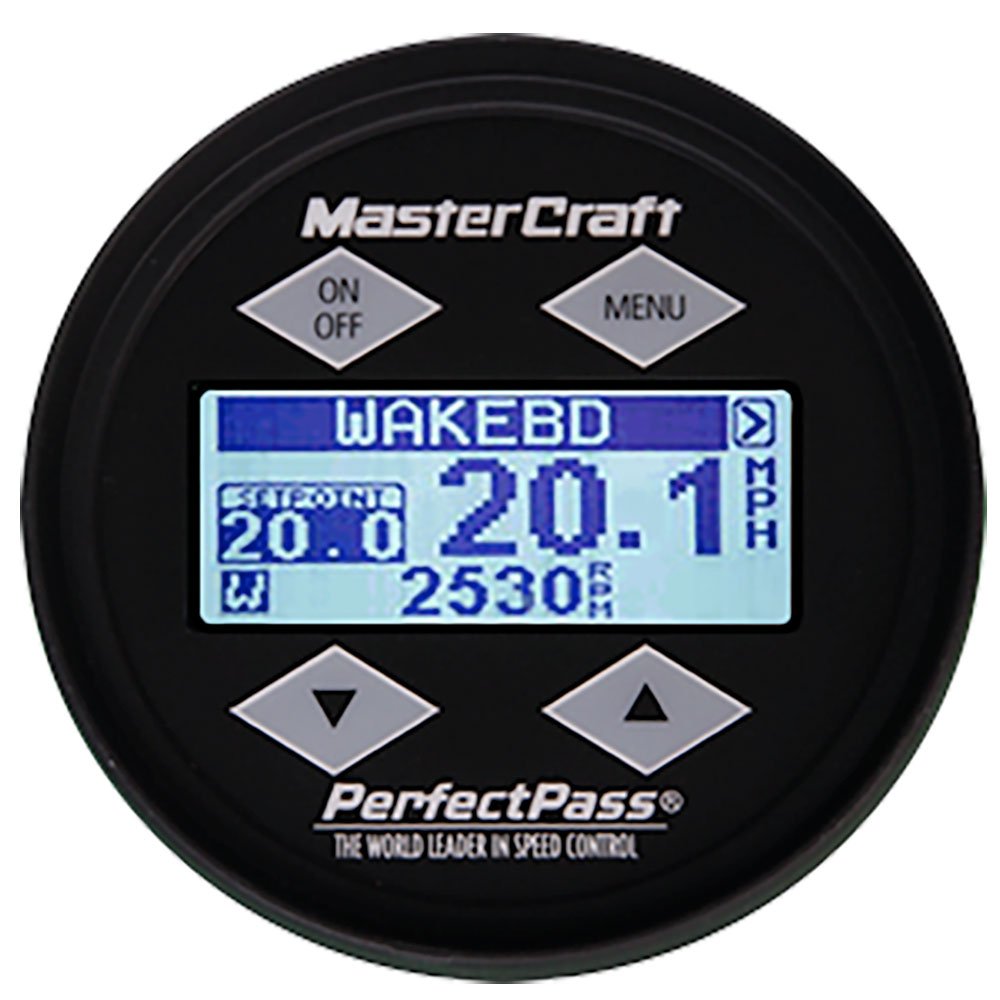

3.5 inch Mastercraft Black

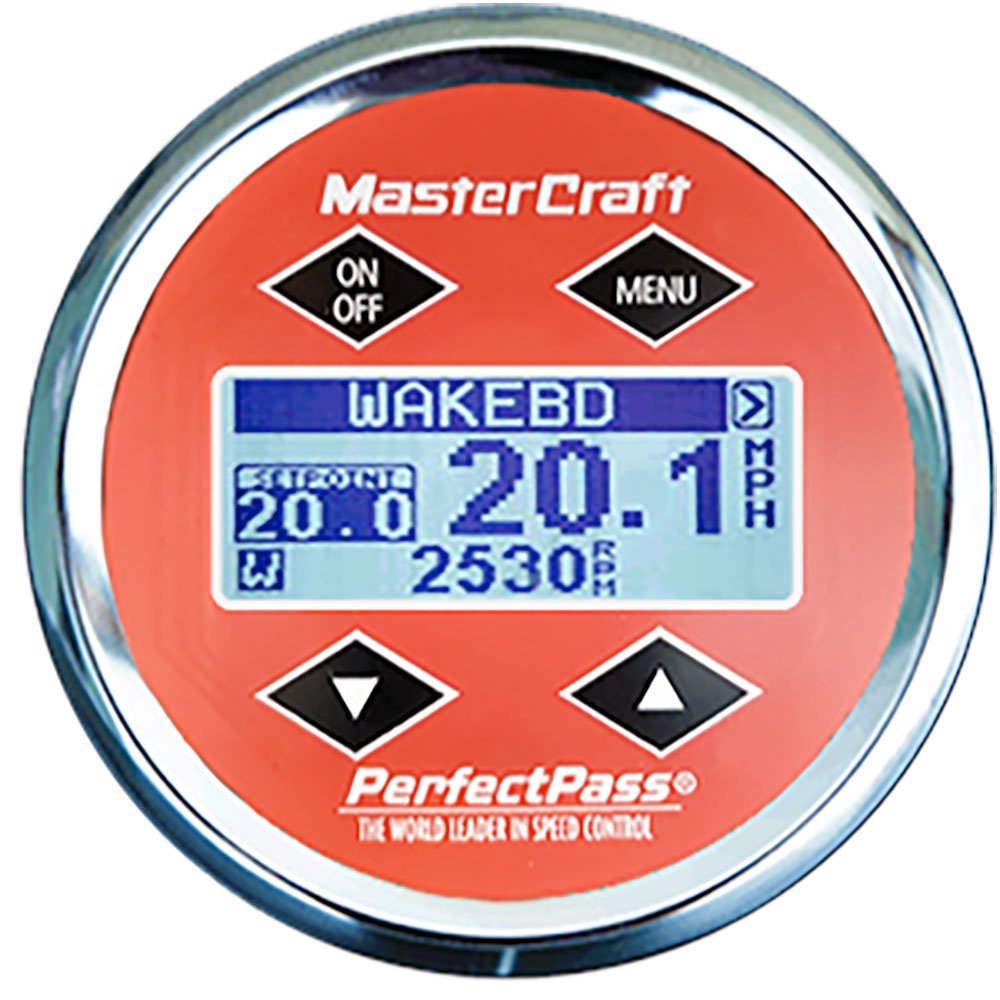

3.5 inch Mastercraft Red

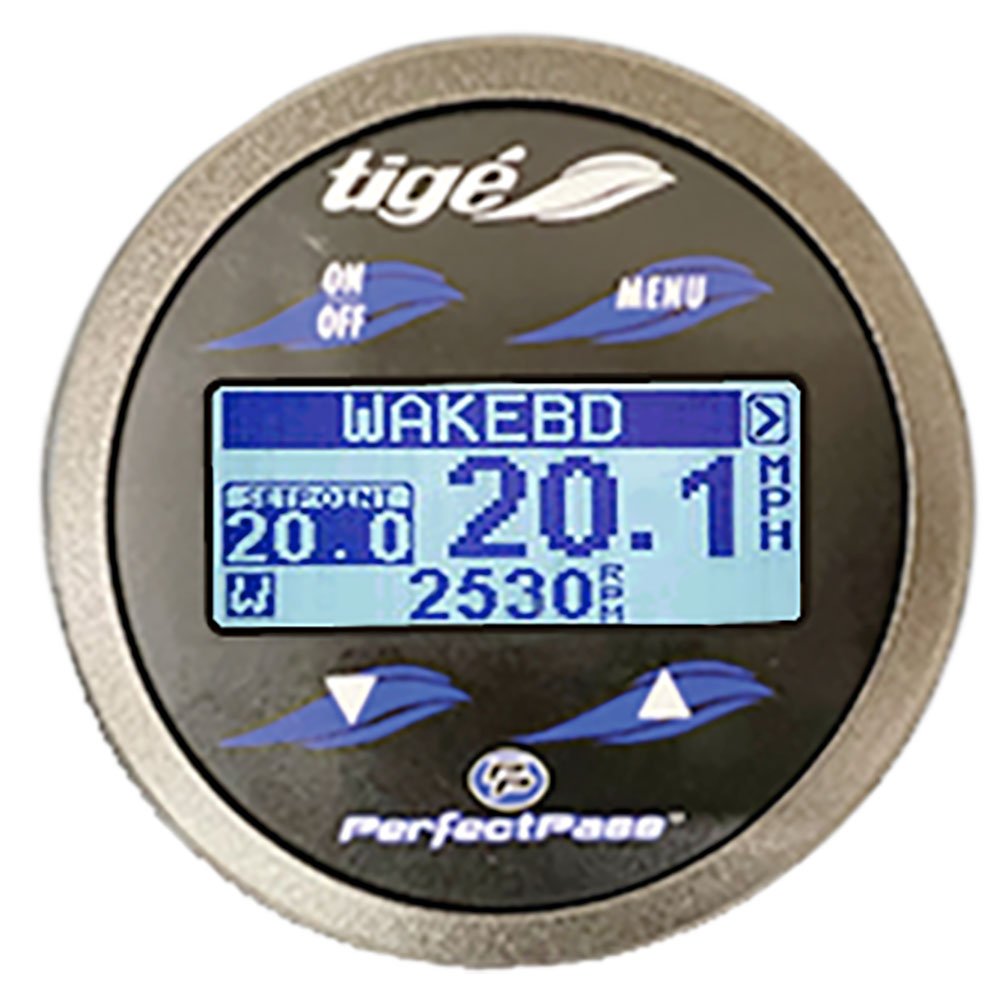

3.5 inch Tige Black

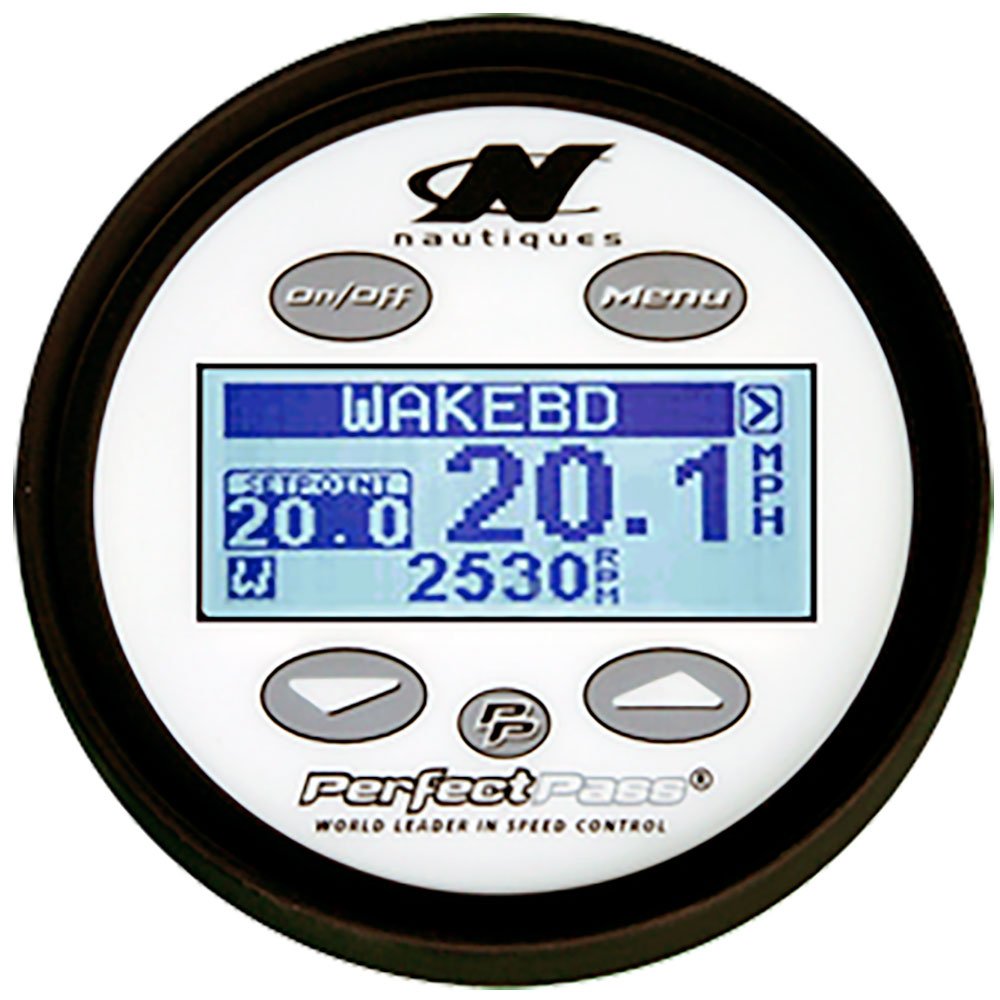

3.5 inch Nautique White

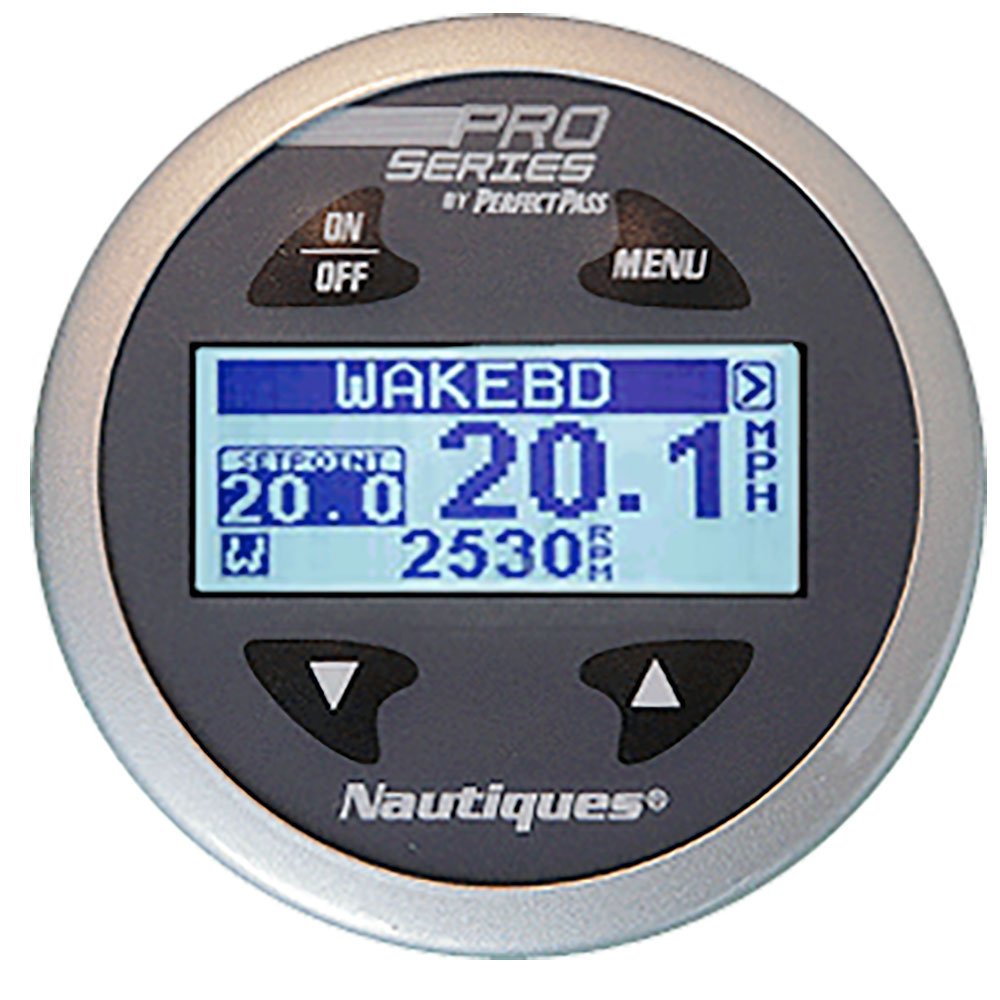

3.5 inch Nautique Gray (2000 – 2002)

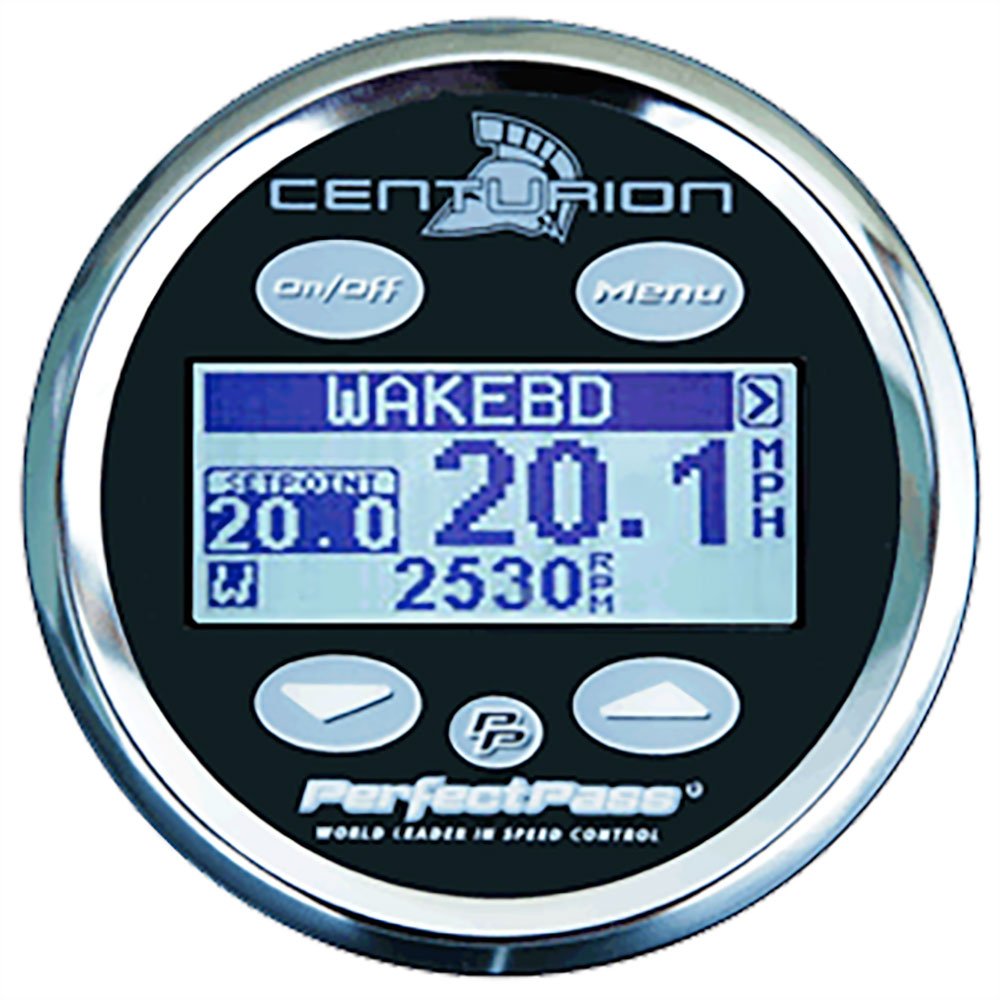

3.5 inch Centurion Black

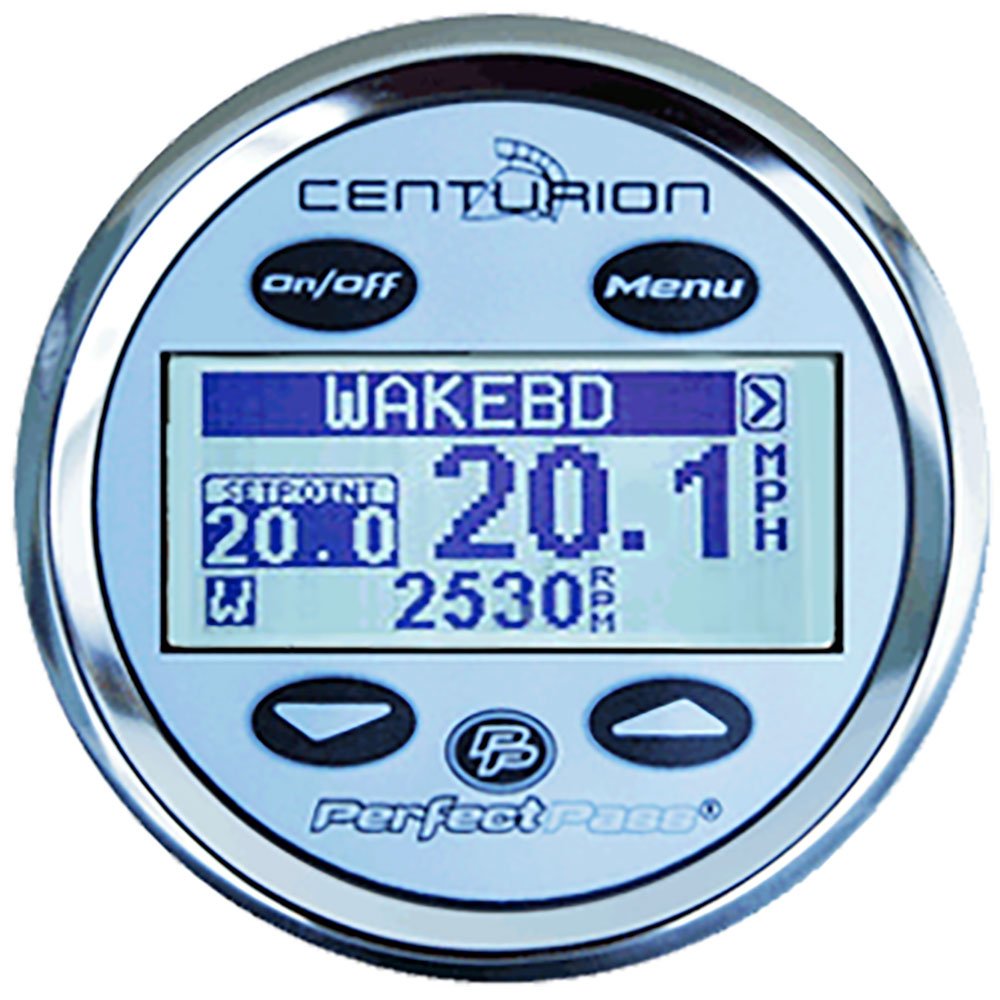

3.5 inch Centurion Silver

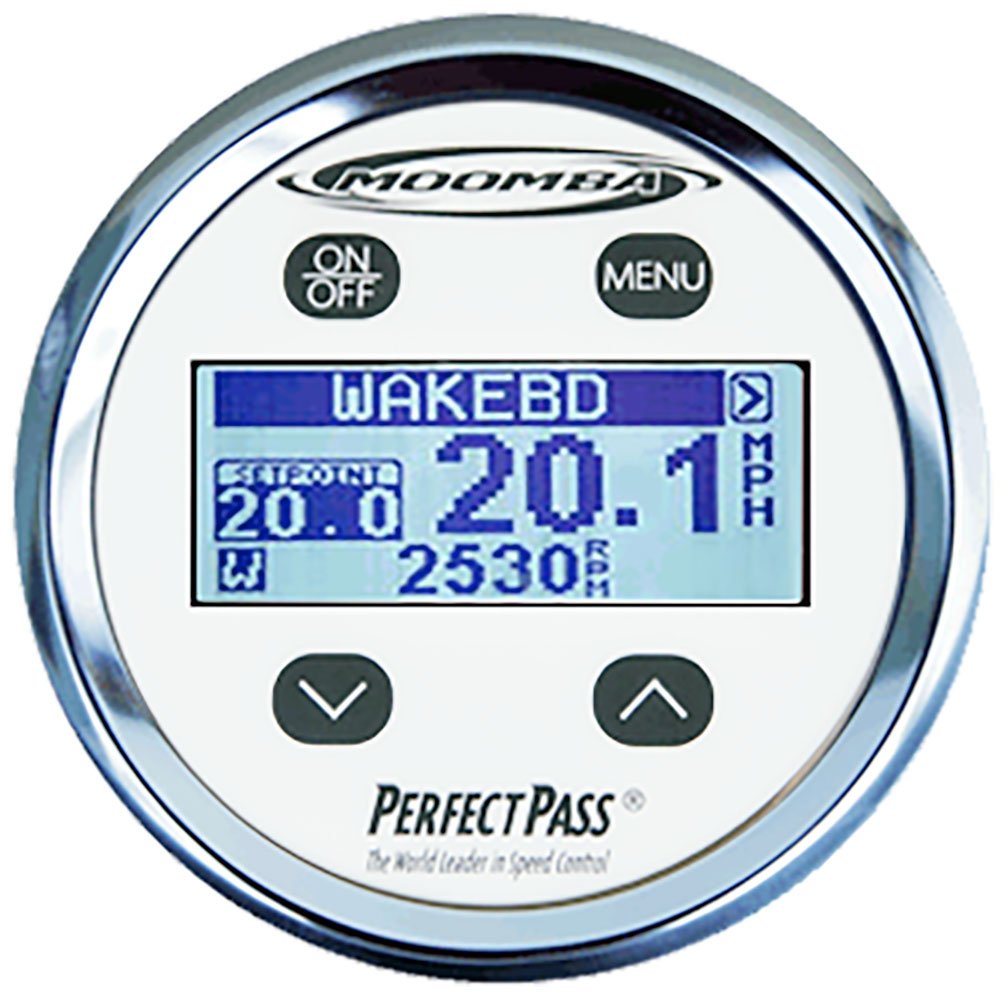

3.5 inch Moomba White

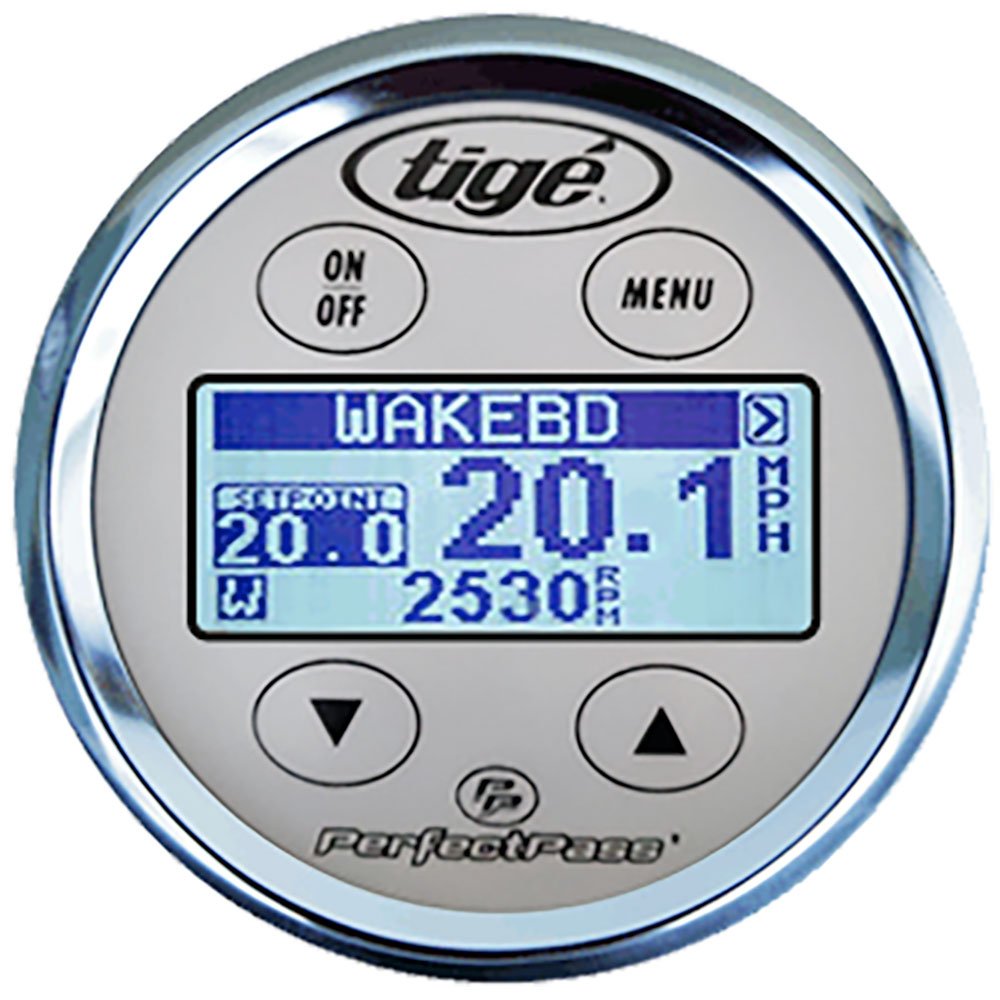

3.5 inch Tige Silver

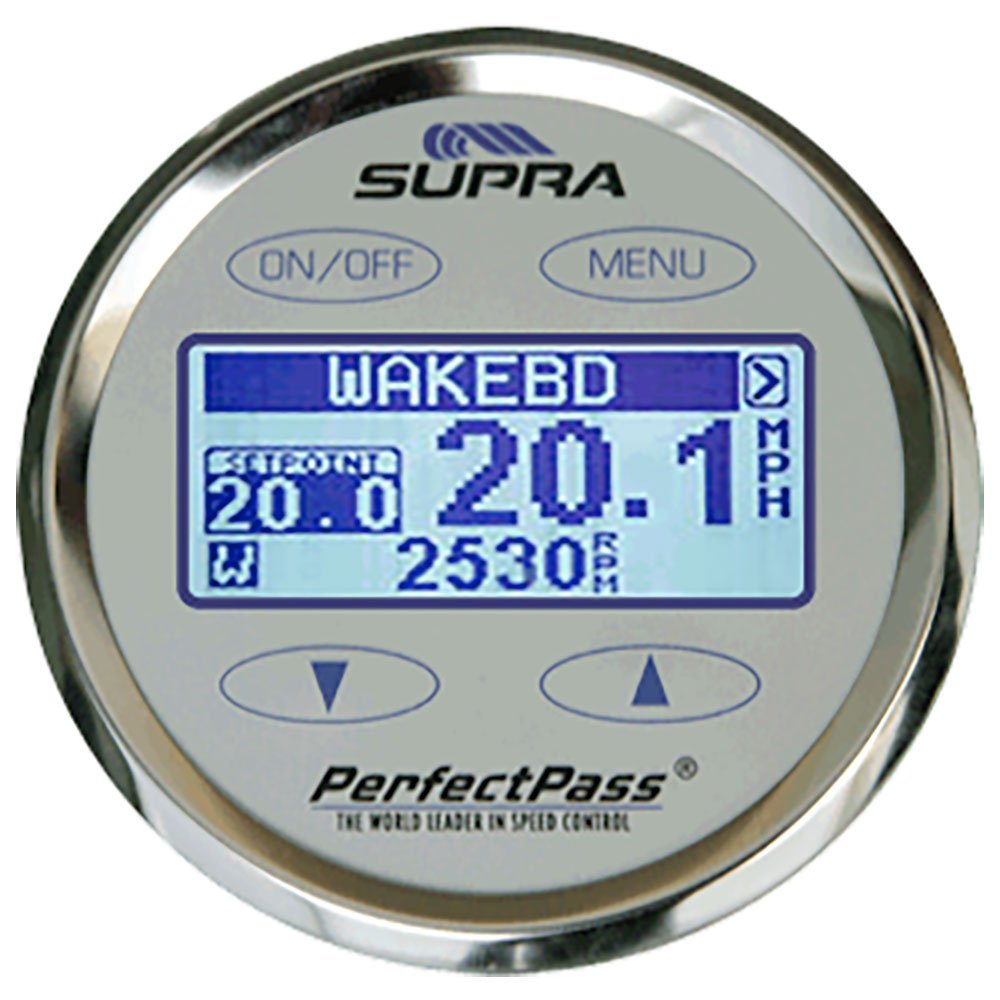

3.5 inch Supra Silver

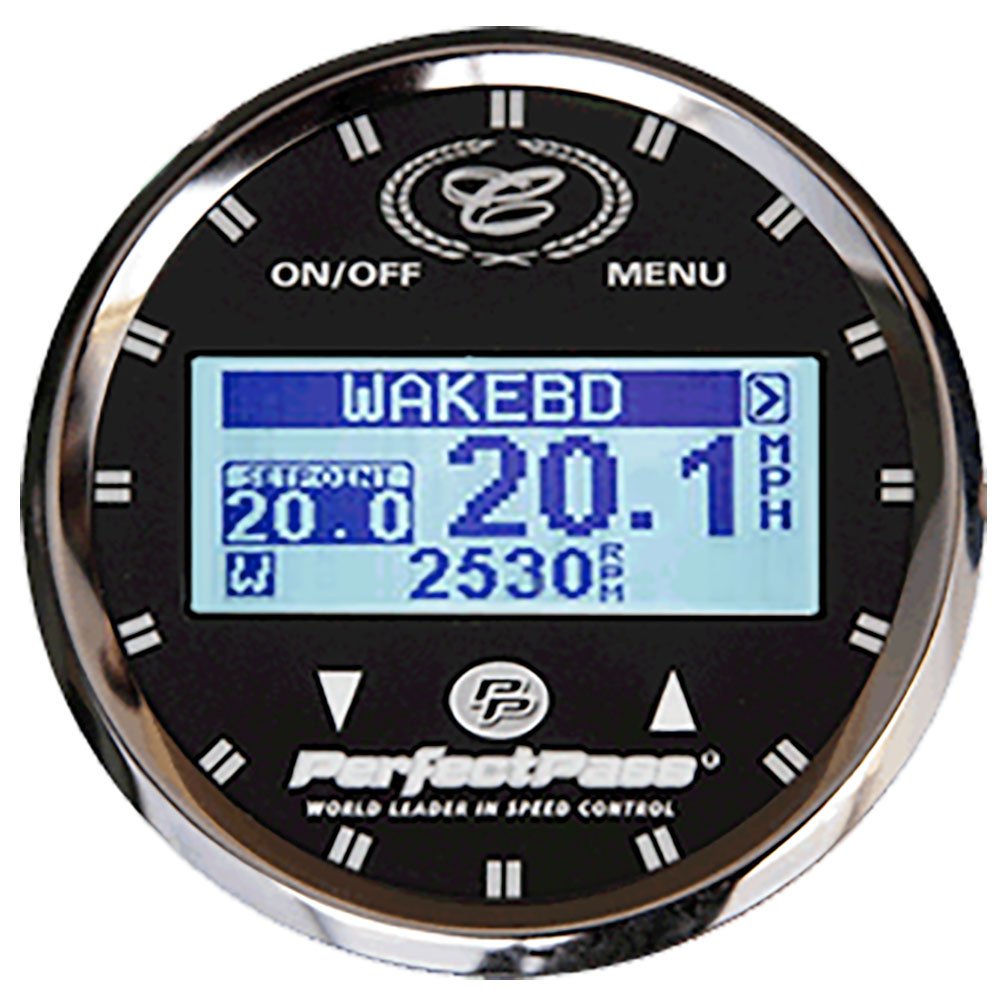

3.5 inch Cobalt Black

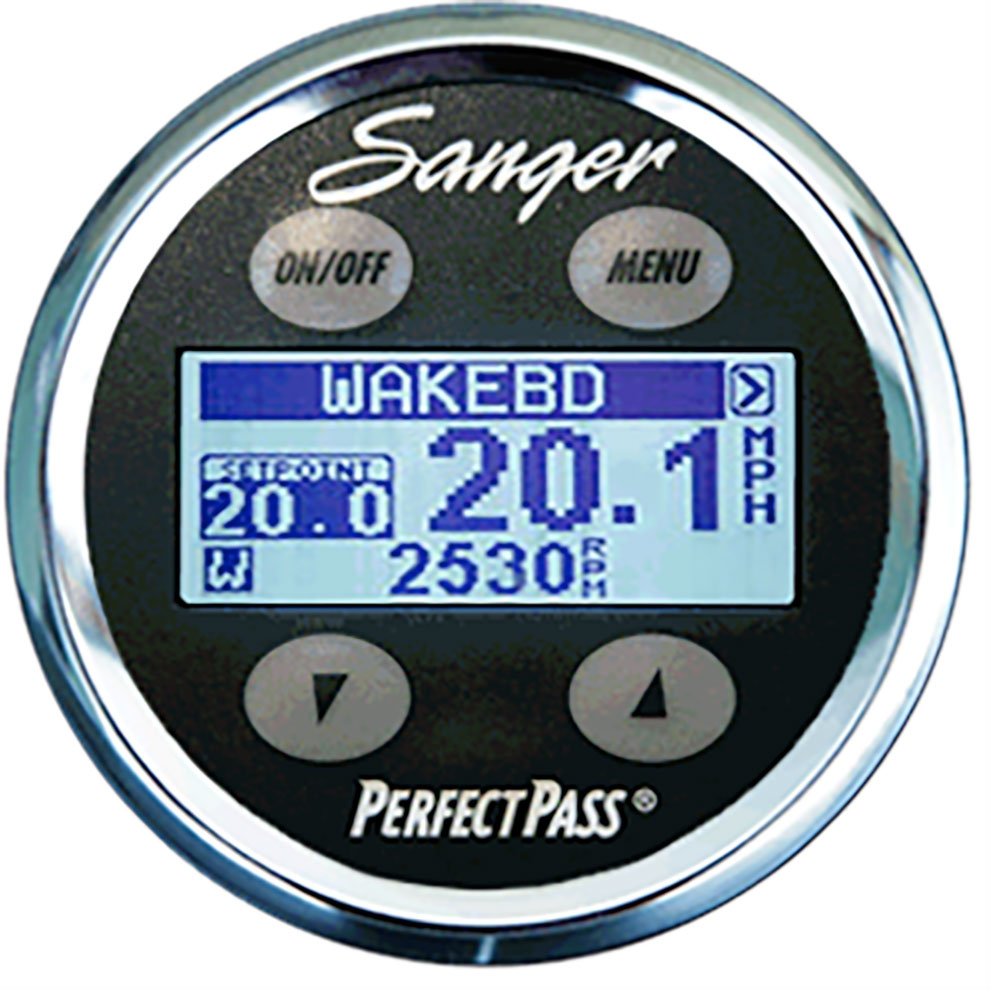

3.5 inch Sanger Black

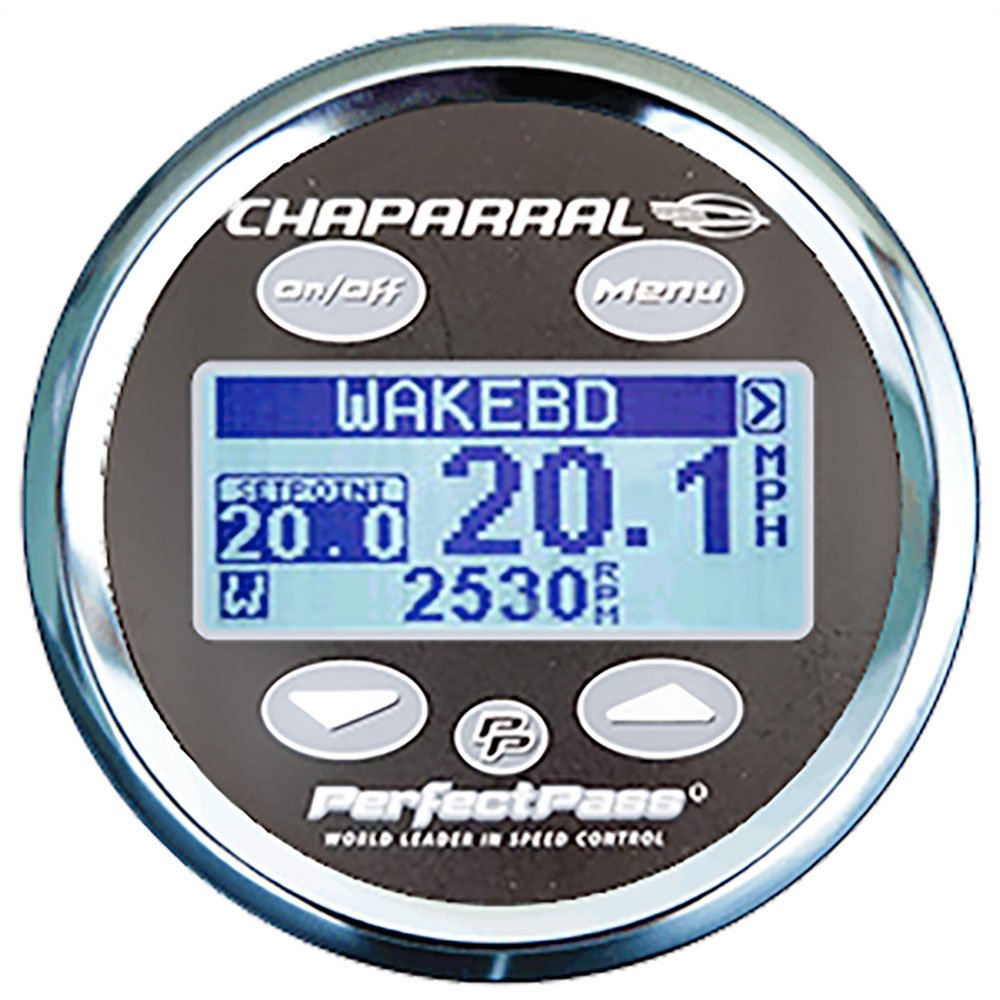

3.5 inch Chaparral Black

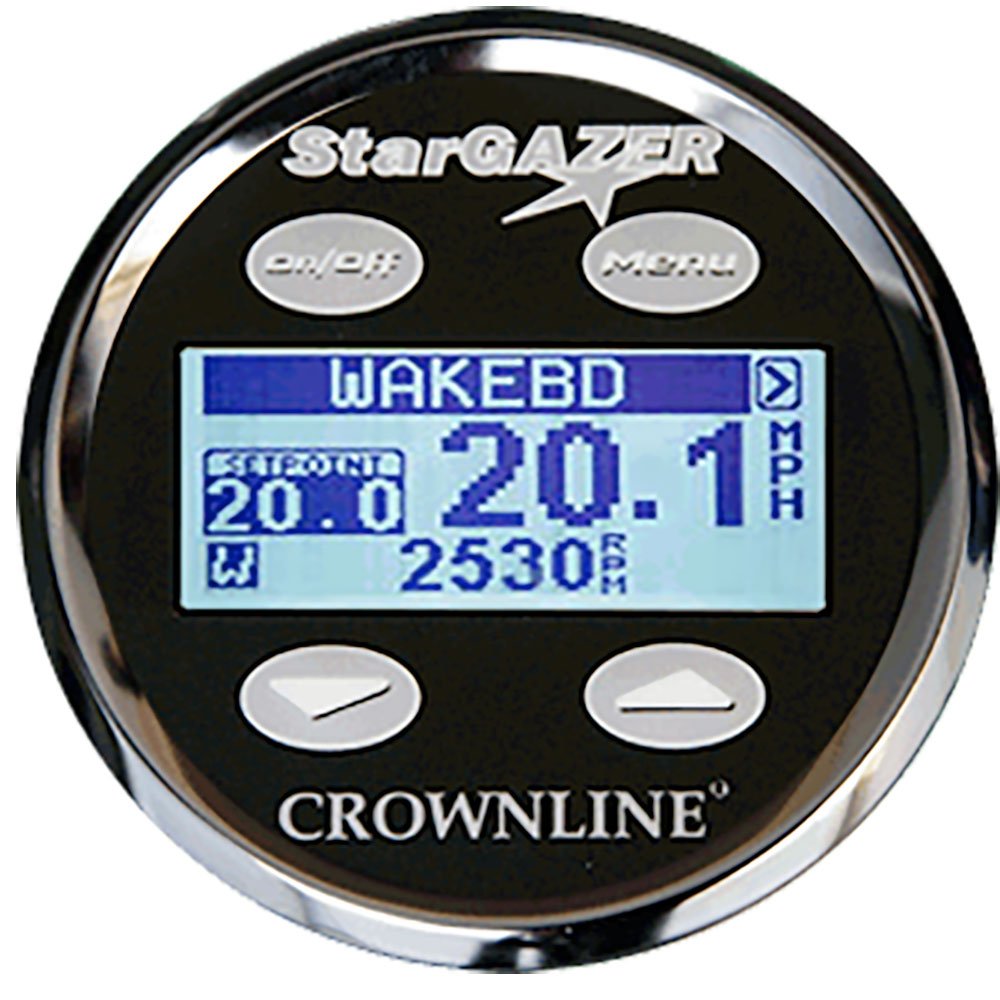

3.5 inch Crownline Black

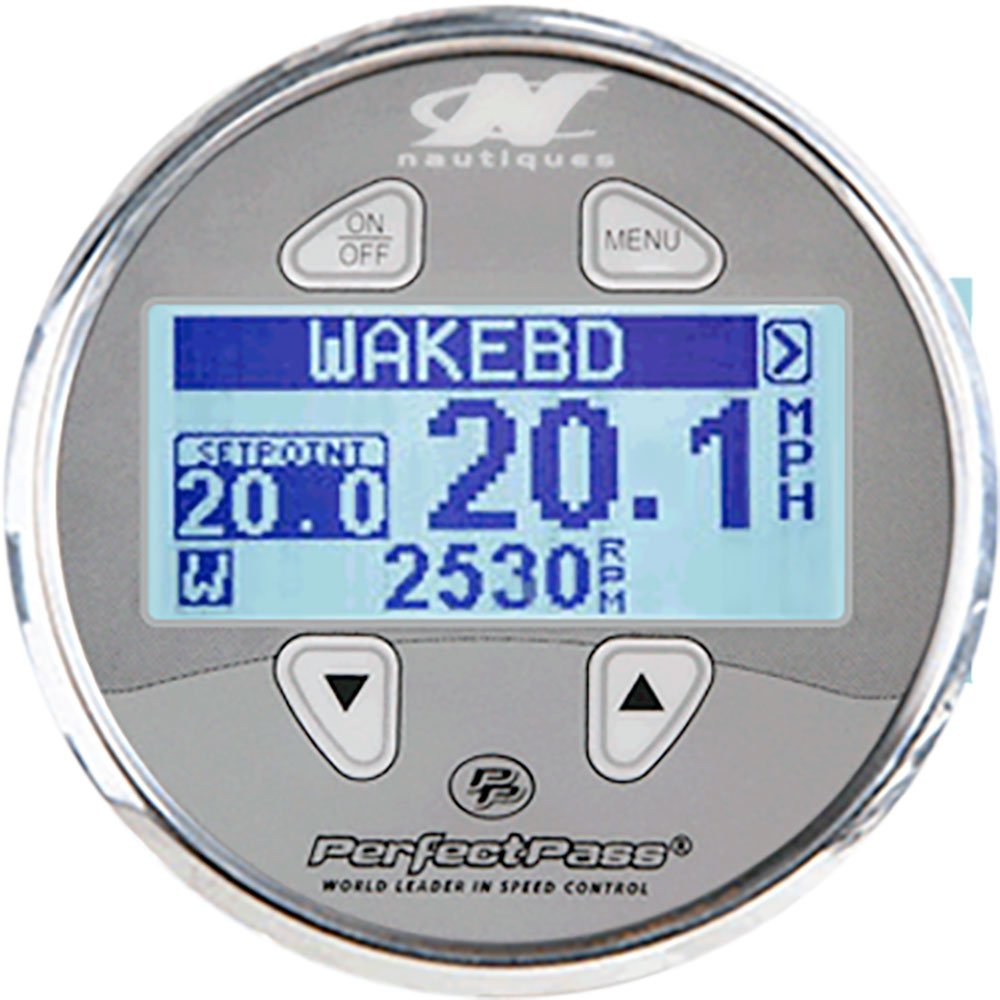

5 inch Nautiques (2003 – 2006) with Jumbo LCD

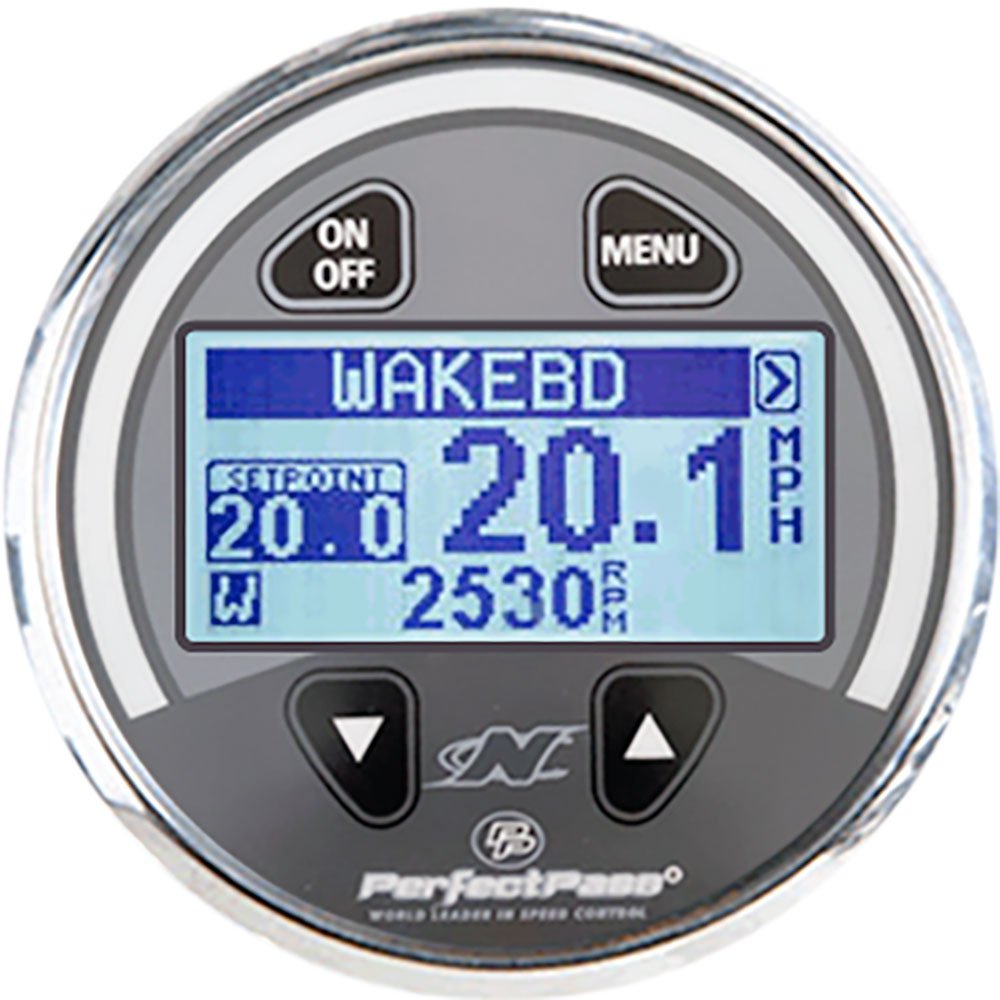

5 inch Nautiques (2007 – 2008) with Jumbo LCD

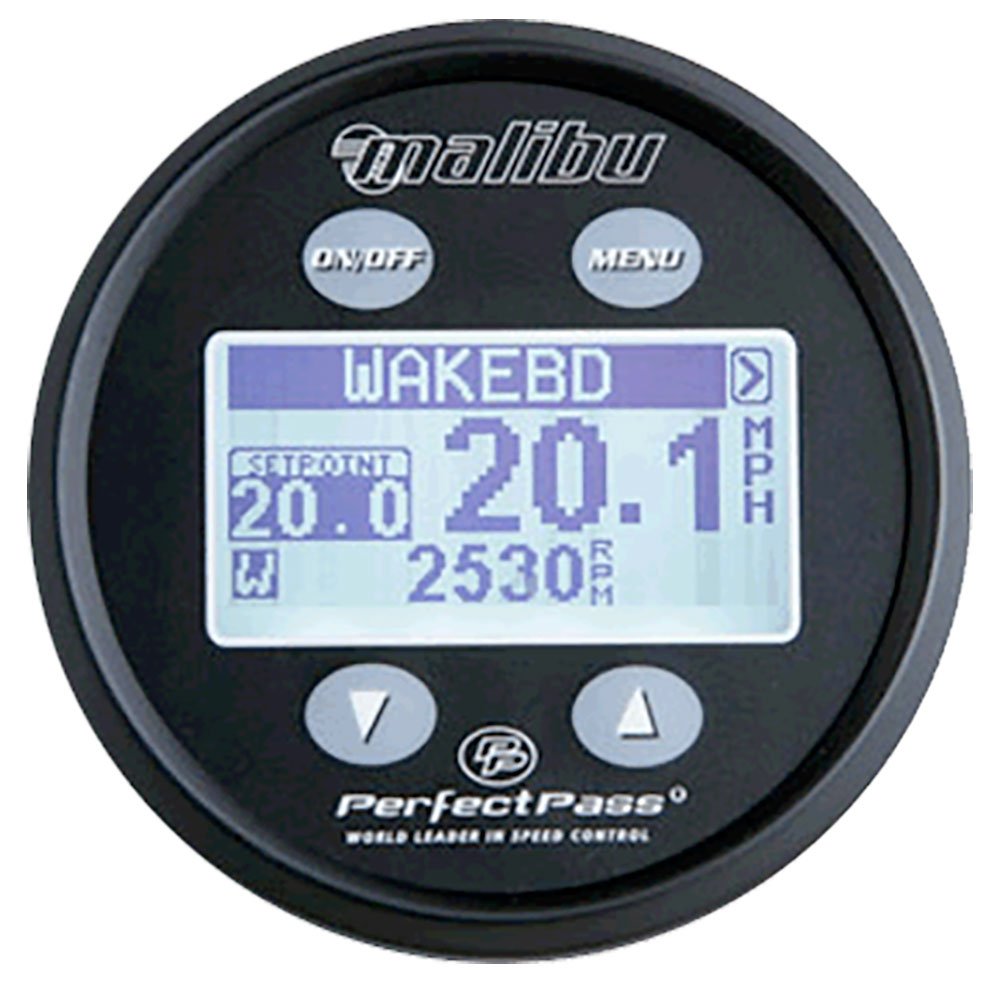

5 inch Malibu Black with Jumbo LCD

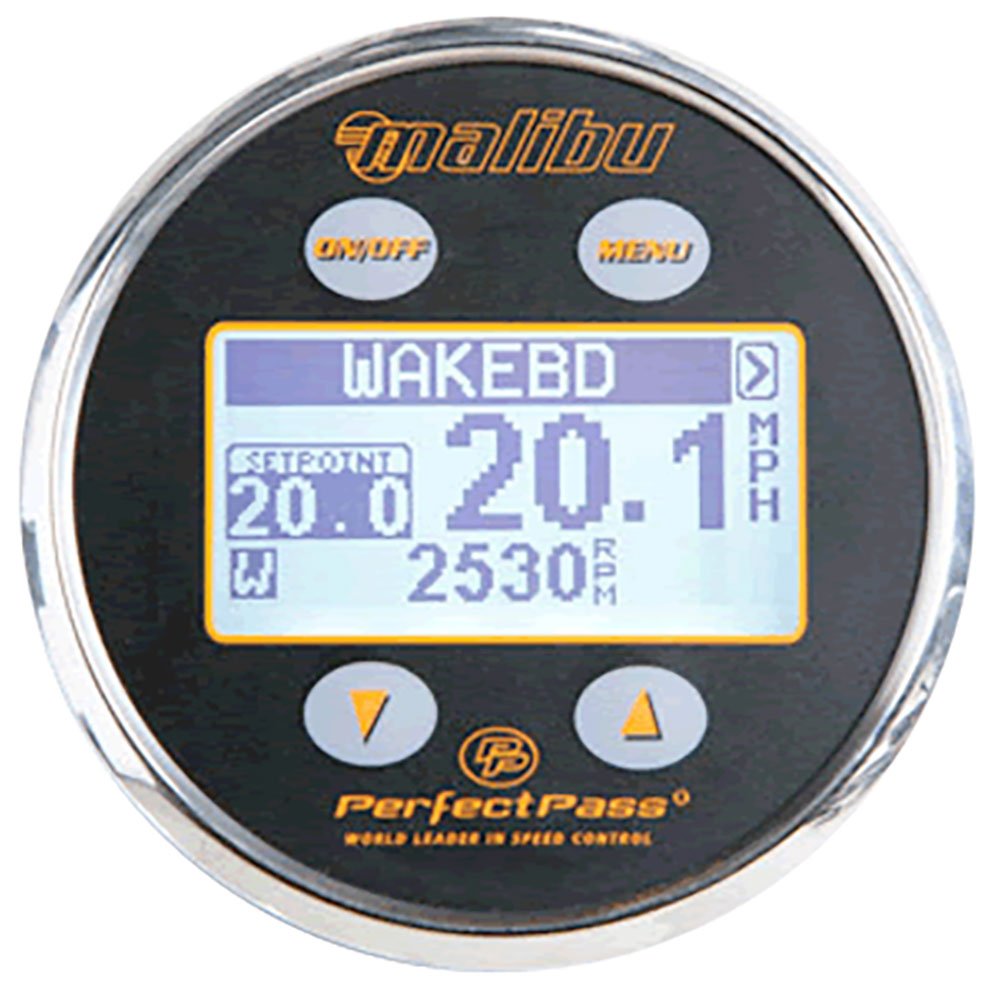

5 inch Malibu Black/Orange with Jumbo LCD (2004 – 2006)

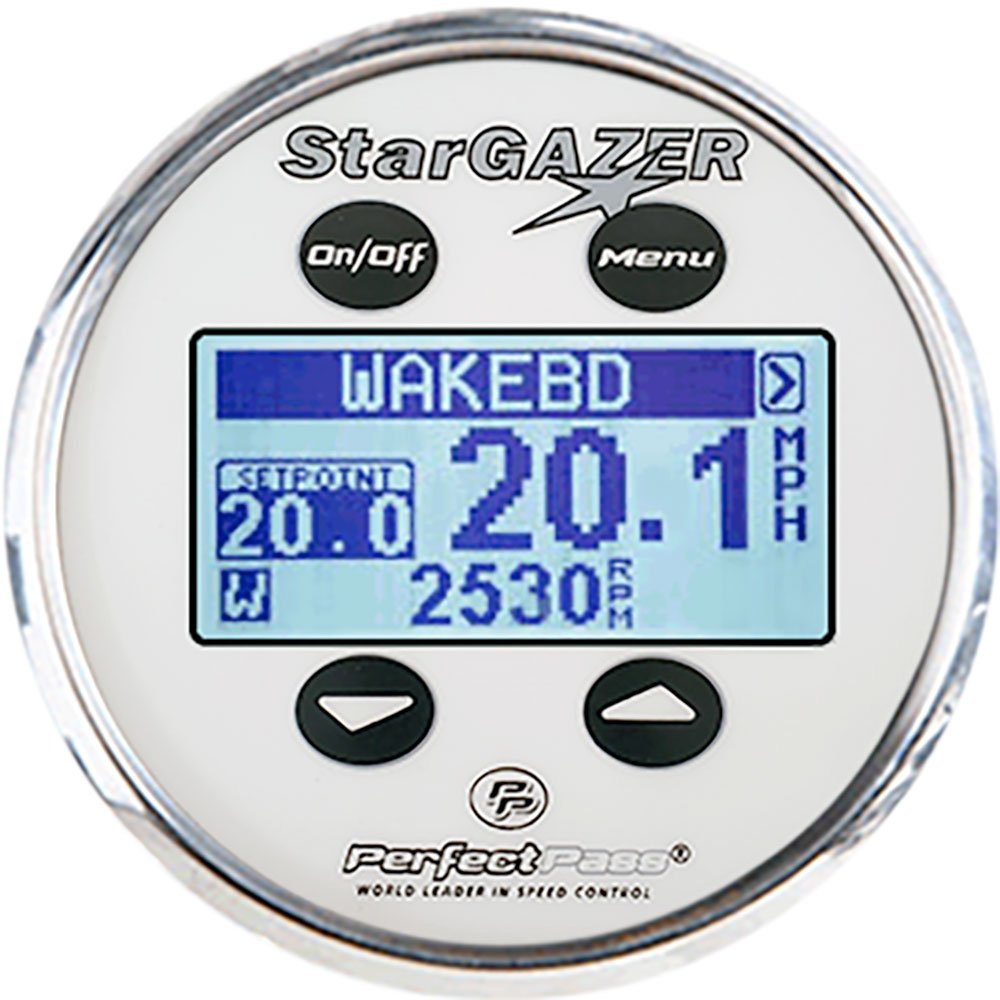

5 inch Star Gazer White with Jumbo LCD

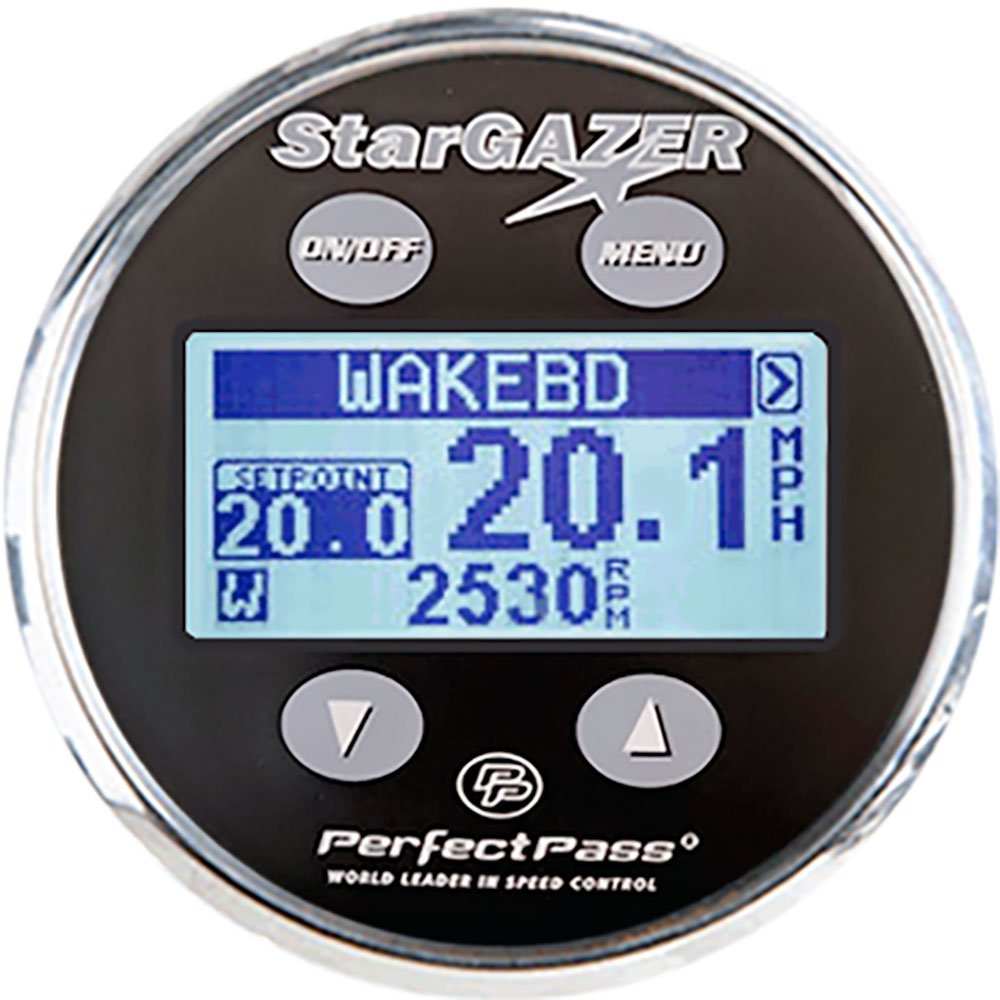

5 inch Star Gazer Black with Jumbo LCD

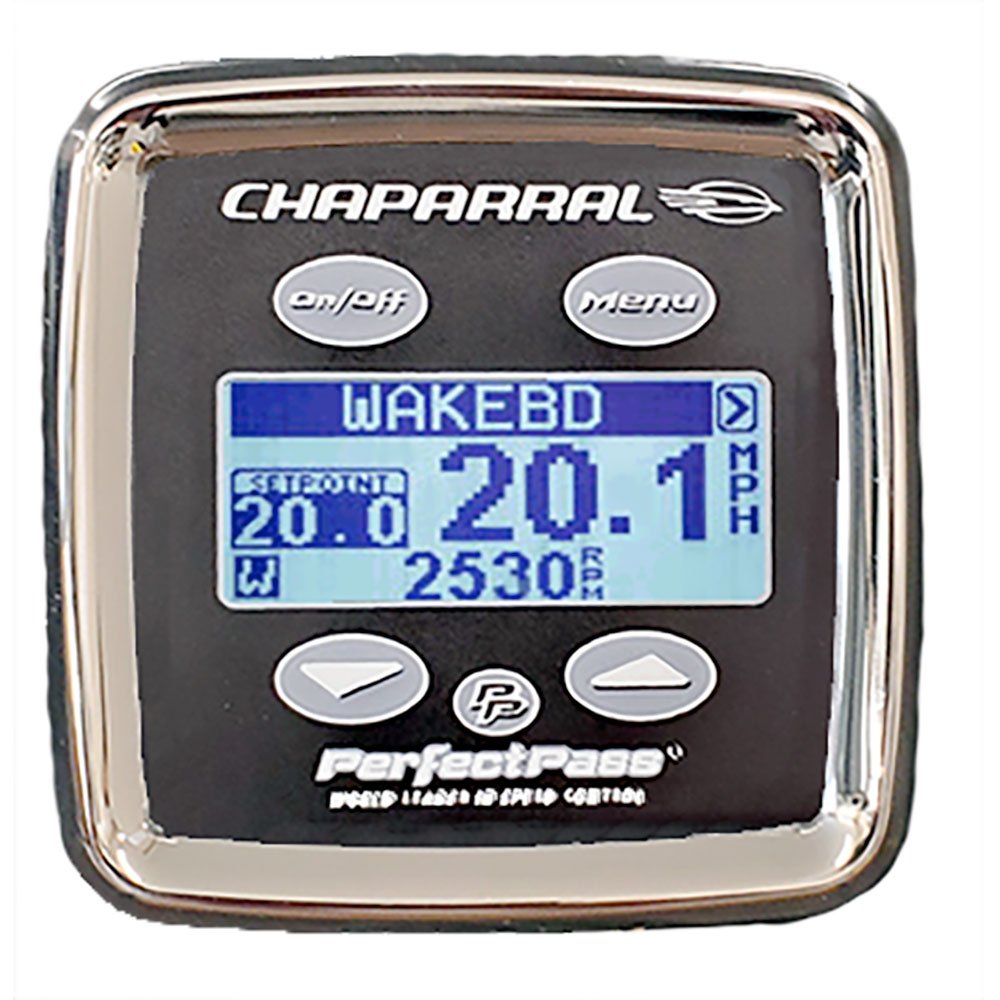

2008-2013 Chapparal (3.5 inch size only)

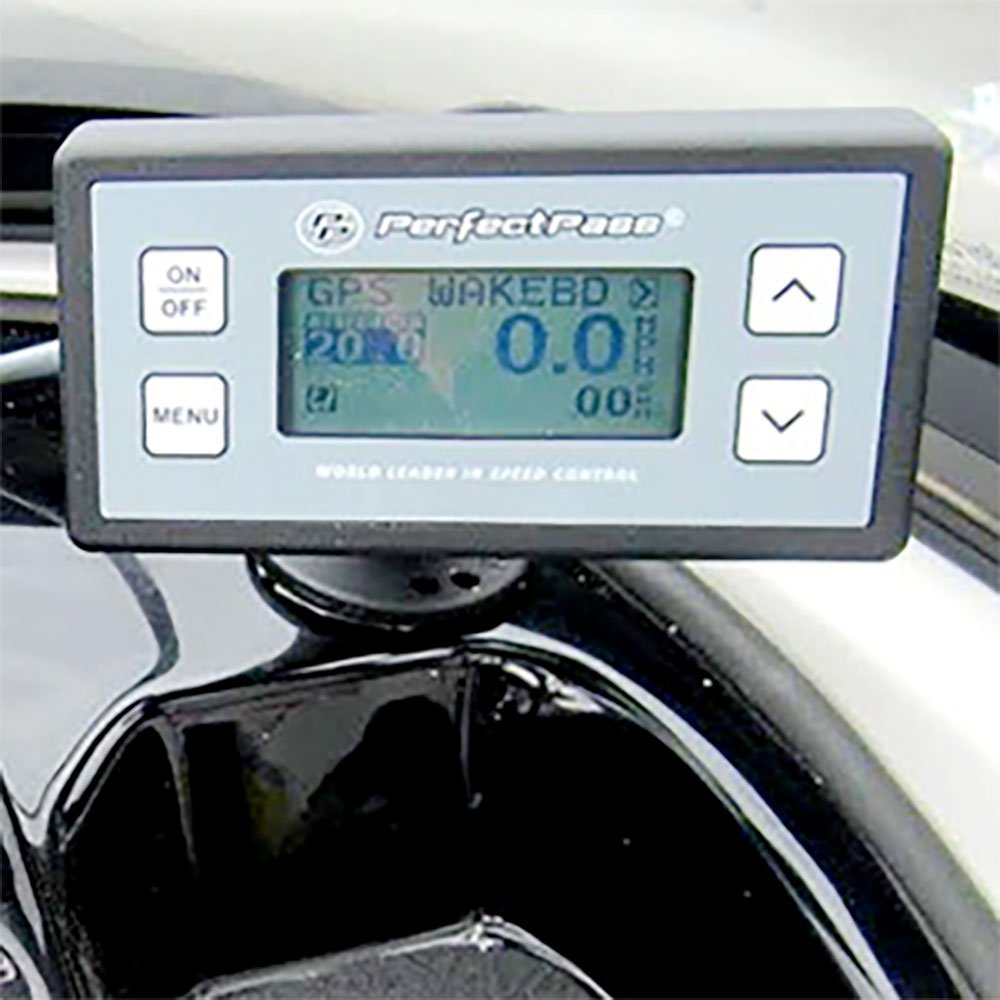

External Display

What size display do I need?

Marine Speedometers/Tachometers are manufactured in only two industry sizes. They are commonly referred to as either 3.5 inch (Often referred to as 4 inch) or the very large 5 inch which are common on newer ski boats such as Malibu & Nautiques.

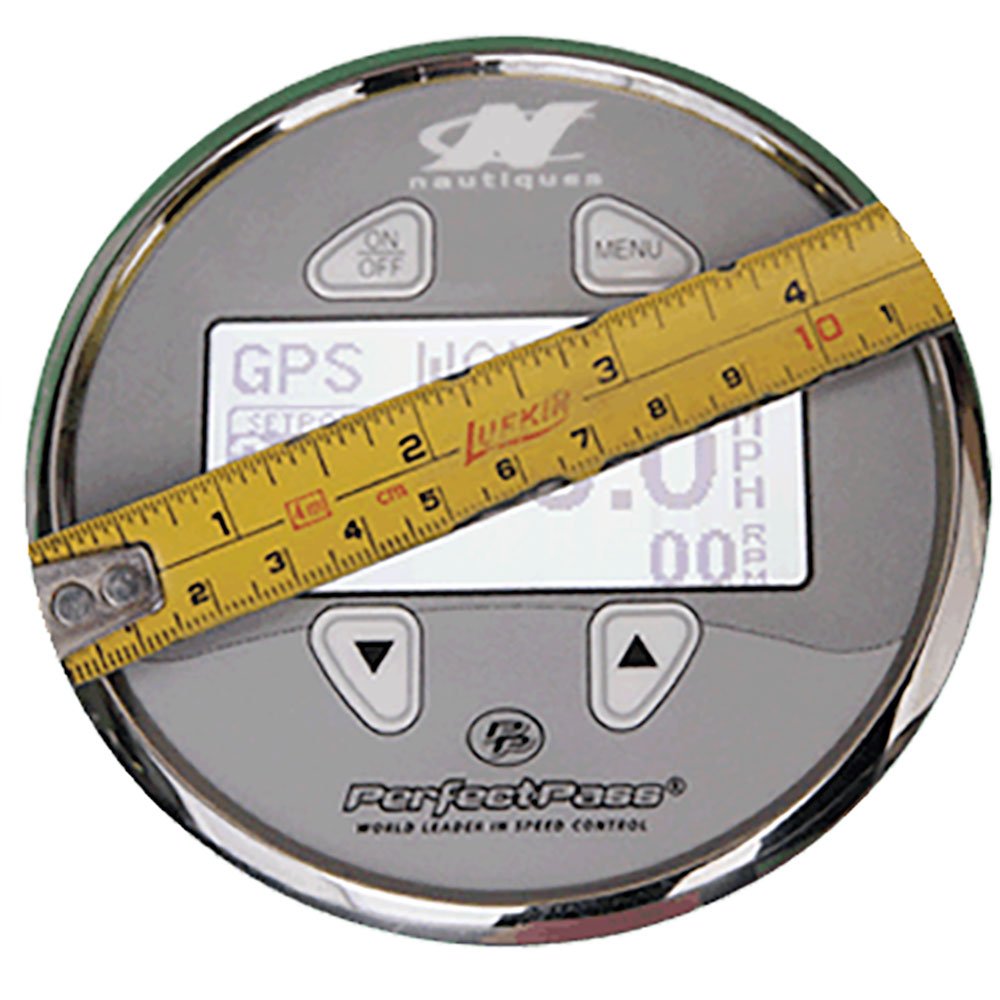

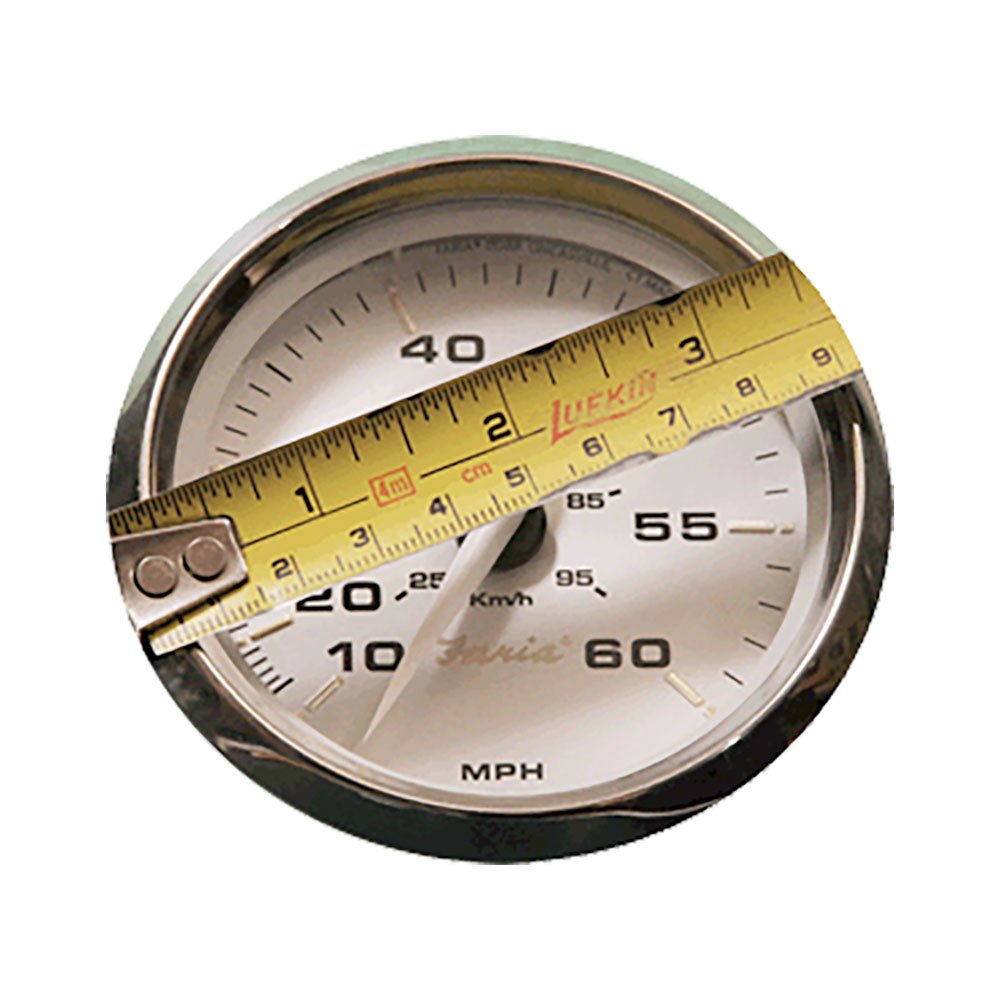

If you measure across the front of your existing speedometer or tachometer you will find the following:

3.5 inch PerfectPass Display

If it measures about 3.5 – 3.75 inches then you will require a 3.5 inch PerfectPass Display

5 inch PerfectPass Display

If it measures about 4.5 – 4.75 inches then you will require a 5 inch PerfectPass Display

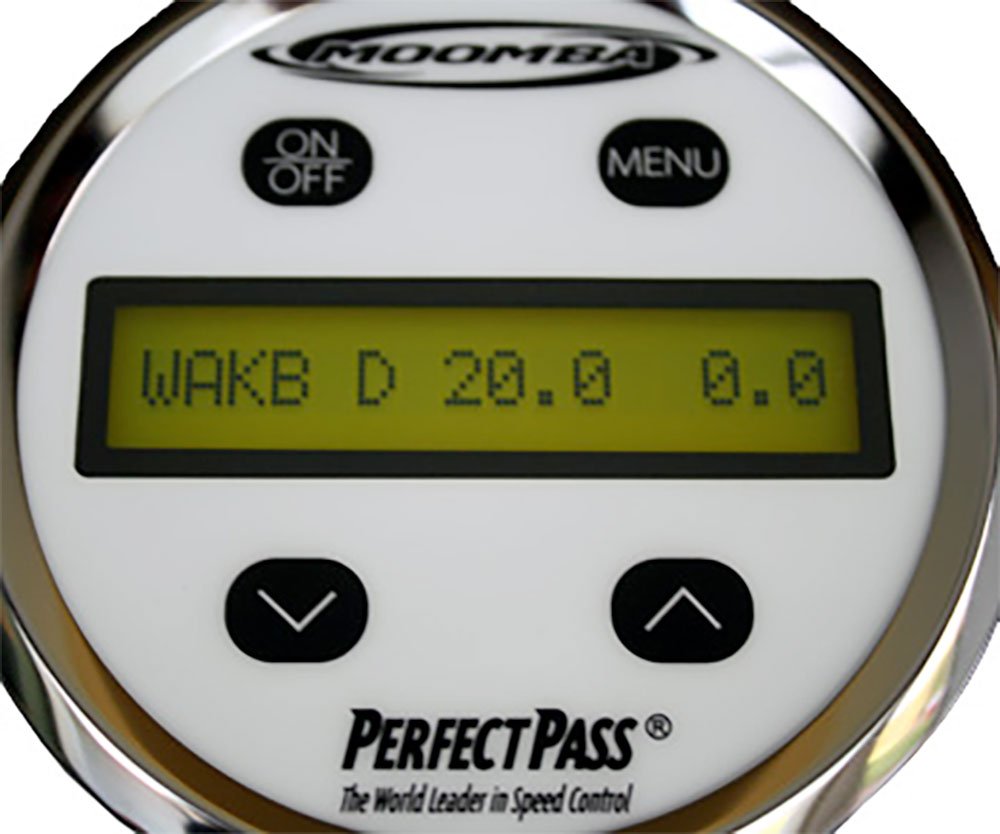

Older Single Line Display Gauge

This image shows the “single line” Display Gauge that was produced from 1995 – June 2005. The 2006 model year for most boat brands was when the newer “multi Line” Display was introduced. Note that the LCD is much smaller with just one line of data. The “multi line” Displays have multiple lines of data in various font sizes.
