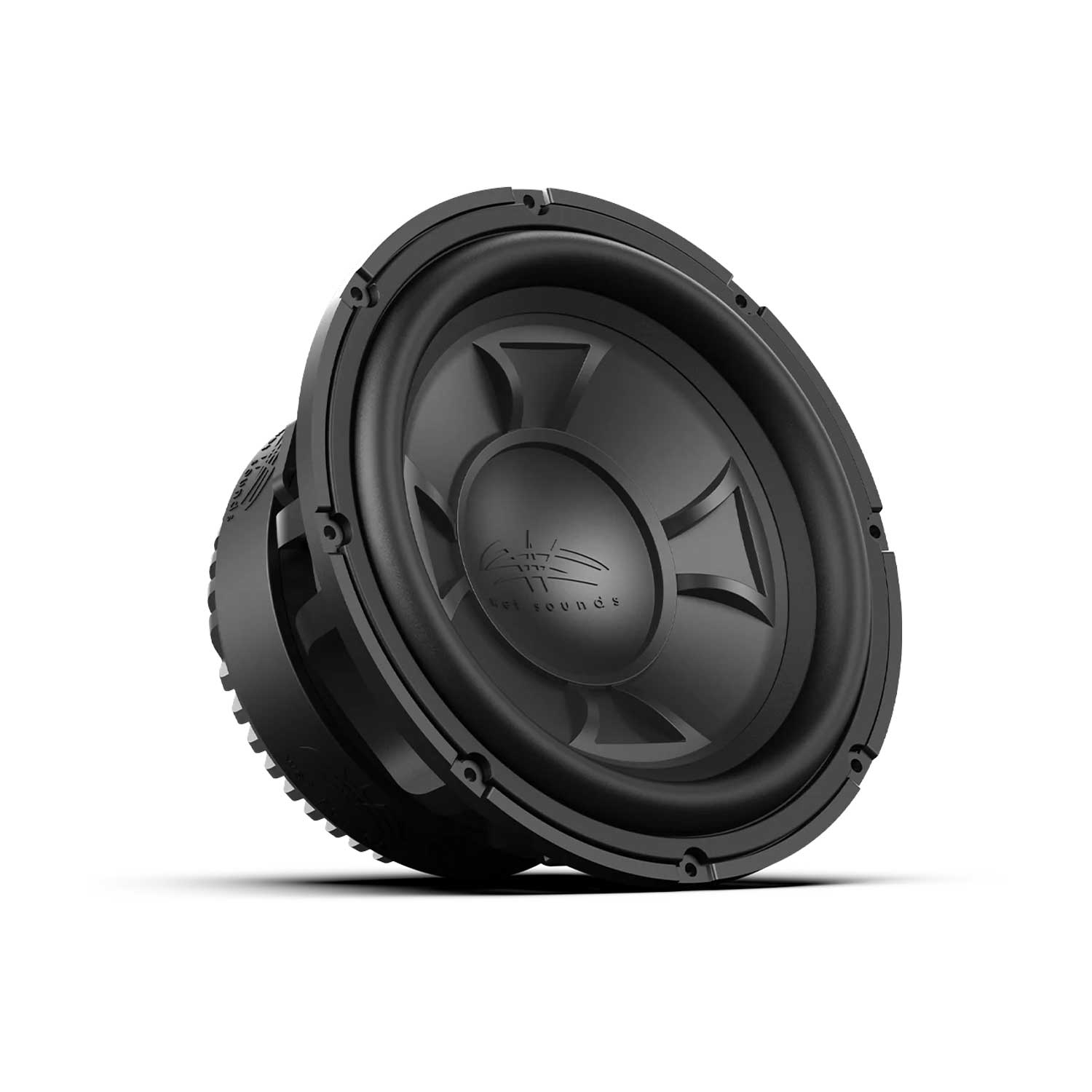

Wet Sounds REVO 12 XXX V4-B — 12″ SPL Marine Subwoofer

The Wet Sounds REVO 12 XXX is a competition-grade 12″ SPL marine subwoofer delivering 1,200W RMS and 2,400W peak power. Built on a ground-up CAD and finite element analysis design with a powder-coated cast aluminium frame, dual 4″ voice coils, carbon fibre/glass fibre composite cone, and an integrated multi-part cooling system — one of the only purpose-built SPL marine subwoofers in the world. Dual 2Ω impedance. Weighs over 30 pounds.

$1,399.00

The REVO 12 XXX is one of the only purpose-built SPL marine subwoofers in the world — a competition-grade 12″ subwoofer designed from the ground up using advanced CAD and full finite element analysis for those who demand extreme bass performance on the water. At over 30 pounds, the REVO 12 XXX is a serious piece of hardware that delivers serious output.

The powder-coated gloss black cast aluminium frame provides a rigid, corrosion-resistant foundation built for the most demanding marine environment. The high-stiffness matte black polypropylene, carbon fibre, and glass fibre composite cone delivers the rigidity and excursion needed for competition-level SPL output, with an Xmax of 11mm and an Sd of 510.7 cm² providing impressive cone area and travel. The high-roll Santoprene thermoformed rubber surround provides a superior seal and long-term durability under sustained high-power use.

A dual 4″ voice coil wound on a fiberglass former handles 1,200W RMS and 2,400W peak with a heavy-duty magnetic system providing the motor force required for true SPL performance. The integrated multi-part cooling system — combining a T-yoke heat sink with combination peripheral and pole piece venting — ensures consistent low voice coil temperatures during extended high-output sessions. Gold-plated screw-down binding posts provide secure, corrosion-resistant connections at any power level.

Optimised for a 1.2 cubic foot sealed enclosure or a 1.8 cubic foot ported enclosure tuned at 41Hz. Backed by Wet Sounds’ 2-year warranty.

Specifications

  • Subwoofer size: 12″
  • RMS power: 1,200W
  • Peak power: 2,400W
  • Impedance: Dual 2Ω
  • Voice coil: Dual 4″ on fiberglass former
  • SPL: 89dB
  • Fs: 40Hz
  • Xmax: 11mm
  • Sd: 510.7 cm²
  • Mms: 242g
  • Vas: 24 litres
  • Qts: 0.39
  • Qms: 5.00
  • Qes: 0.42
  • Bl: 11.9 T·m
  • Le: 0.5mH
  • Frame: Powder-coated gloss black cast aluminium
  • Cone: High-stiffness matte black polypropylene/carbon fibre/glass fibre composite
  • Surround: High-roll Santoprene thermoformed rubber
  • Cooling: Integrated multi-part system with T-yoke heat sink and combination peripheral/pole piece venting
  • Terminals: Gold-plated screw-down binding posts
  • Box specs: 1.2 cu ft sealed or 1.8 cu ft ported (optimum tuned at 41Hz)
  • Mounting depth: 6.53″ (165.86mm)
  • Diameter: 12.4″ (314.96mm)
  • Hole cut-out: 11.26″ (286.00mm)
  • Weight: 33.4 lbs (15.14kg)
  • Application: Enclosure
  • Cone colour: Black
